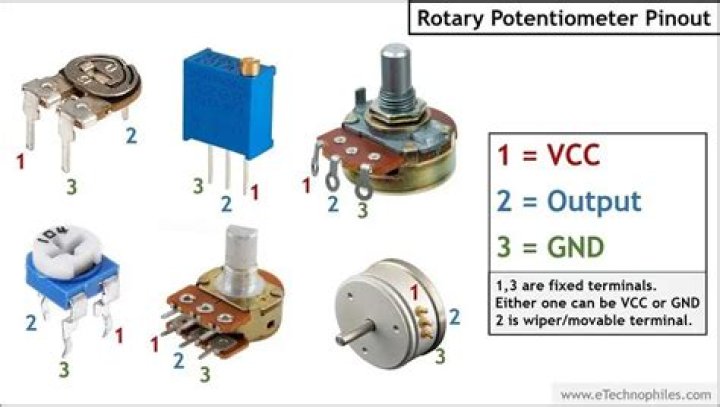

There are two main types of potentiometer, linear potentiometers and rotary potentiometers. Membrane Potentiometers are another type of potentiometer they are often referred to as “soft pots” and can be either linear or rotary.

Also question is, what are the types of potentiometer?

Lesson Summary Potentiometers can be of two types, linear and rotary. A potentiometer consists of four main components: two fixed terminals, one moving terminal (called the wiper), a resistive strip or track, and the housing.

Similarly, what is potentiometer explain? A potentiometer (also known as a pot or potmeter) is defined as a 3 terminal variable resistor in which the resistance is manually varied to control the flow of electric current. A potentiometer acts as an adjustable voltage divider.

Likewise, what is potentiometer and its uses?

The Potentiometer is an electric instrument used to measure the EMF (electromotive force) of a given cell, the internal resistance of a cell. And also it is used to compare the EMFs of different cells. It can also use as a variable resistor in most of the applications.

What is the difference between A and B potentiometers?

500k "A" would denote an audio taper pot, and the "B" suffix would denote a linear taper pot. The only difference is the taper of the pot, or "how gradually it rolls off". Most manufacturers use either (2) audio taper pots for volume + tone or would use audio taper for volume, and linear taper for tone.

Related Question Answers

What is the formula of potentiometer?

Potential gradient is calculated as K = V/L, where V is the voltage across the potentiometer wire and the L is the length of the wire in the potentiometer. So the unit of potential gradient is volts/meter. We know that by Ohm's law Voltage V = I R, where I is current flowing through the circuit and R is the resistance.

Where is a potentiometer used?

The measuring instrument called a potentiometer is essentially a voltage divider used for measuring electric potential (voltage); the component is an implementation of the same principle, hence its name. Potentiometers are commonly used to control electrical devices such as volume controls on audio equipment.

Which wire is used in potentiometer?

Generally alloys like constantan or manganin are used as potentiometer wire because they posses high specific resistance and low temperature coefficient.

What are the advantages and disadvantages of potentiometer?

Advantages of Potentiometer This is highly sensitive so can be used to measure small emf's. For more accuracy the length of potentiometer wire can be increased according to requirement. It does not draw any current from the circuit in which it is used for measurement.

What is the difference between AC and DC potentiometer?

distinction is made between DC and AC potentiometers. In DC potentiometers, the voltage being measured is compared to the emf of a standard cell. In AC potentiometers, the unknown voltage is compared with the voltage drop produced by a current of the same frequency across a known resistance.

Which type of potentiometer is used for volume control?

A potentiometer is also commonly known as a potmeter or pot. The most common form of potmeter is the single turn rotary potmeter. This type of pot is often used in audio volume control (logarithmic taper) as well as many other applications.

What is 10k potentiometer?

A potentiometer is a manually adjustable variable resistor with 3 terminals. Two terminals are connected to both ends of a resistive element, and the third terminal connects to a sliding contact, called a wiper, moving over the resistive element. The potentiometer essentially functions as a variable voltage divider.

What is the function of potentiometer?

The measuring instrument called a potentiometer is essentially a voltage divider used for measuring electric potential (voltage); the component is an implementation of the same principle, hence its name. Potentiometers are commonly used to control electrical devices such as volume controls on audio equipment.

What is sensitivity of potentiometer?

Sensitivity of Potentiometer Meaning Sensitivity of potentiometer is defined as the smallest potential difference that is measured by using potentiometer. Sensitivity of potentiometer can be increased by: Increasing the length of the potentiometer wire. By reducing the current in the circuit by using a rheostat.

What is the purpose of two potentiometers?

Two potentiometer combined on the same shaft, enabling the parallel setting of two channels. Most common are single turn potentiometers with equal resistance and taper.

Is potentiometer analog or digital?

A digital potentiometer (also called a resistive digital-to-analog converter, or informally a digipot) is a digitally-controlled electronic component that mimics the analog functions of a potentiometer. It is often used for trimming and scaling analog signals by microcontrollers.

Is a potentiometer a sensor?

The potentiometer is also called as pots and it one of the most commonly used devise for measuring the displacement of the body. The potentiometer is the electrical type of transducer or sensor and it is of resistive type because it works on the principle of change of resistance of the wire with its length.

What does B mean on a potentiometer?

A generally means audio taper and B generally means linear taper.

What is a Type B potentiometer?

Potentiometers made in Asia and the USA are usually marked with an "A" for logarithmic taper or a "B" for linear taper; "C" for the rarely seen reverse logarithmic taper. When a percentage is referenced with a non-linear taper, it relates to the resistance value at the midpoint of the shaft rotation.

What is a CTS potentiometer?

Emerson Pro Pots (CTS) Potentiometers are custom made by CTS to Emerson specifications. Emerson Pro Pots are low torque and feature a proprietary custom audio taper that ware designed to maximize response (think turning down your volume to 2 and it's the same effect as turning down your amp's volume knob).

Are Alpha Pots good?

CTS pots are the best for having the smoothest/truest audio taper. Bourns is almost as good, but they are very loose, which I don't like. Alpha is pretty mediocre but they tend to be the go-to pot since they're easily sourced, relatively cheap, and relatively well made.

What is the difference between linear and audio potentiometers?

An AUDIO taper pot increases the signal from your guitar to your amp in a logarithmic (exponential) fashion. A LINEAR taper pot increases the signal in a linear fashion. (“1” on your control is equal to 10%, “4” is equal to 40% and so forth) This works very different from an audio taper volume pot.

What is the difference between linear and logarithmic potentiometer?

These are Linear (Lin) or Logarithmic (Log) tracks. With linear potentiometers, the resistance between one end of the track and the wiper varies at a constant rate as the slider is moved along the track. In logarithmic types, the change in resistance is much less at one end of the track to the other.

What is an alpha potentiometer?

Alpha potentiometers are among the world's most widely used guitar tone and volume controls. Each pot has an aluminum split shaft that fits a coarse-knurled (18-spline) knob. Alpha pots are audio taper with standard ±20% resistance tolerance.

Is there a difference between tone and volume pots?

The basic difference between the two is how they are wired: Tone pots are logarithmic while volume pots are linear. That is, if you were to look at how they affect electricity, the volume pots would increase in a straight line while the tone pots would increase in a curve.

What are the best potentiometers for guitar?

Either way, here are the best guitar pots and where to buy them.

• Editor's Best Choice: Fender Stratocaster Start 5-Way Wiring Kit – CRL Switch – CTS Pots.
• CTS 450G Series 250k Short SOLID Shaft Audio Taper Potentiometers.
• Seymour Duncan YJM-500 Hi-Speed Volume Electric Guitar Pot 500k.
• DiMarzio 500k Push-Pull Pot.
