To turn off Selection Settings from a dialog box:

1. Open the Drafting Settings dialog box (DSETTINGS).
2. On the Selection Cycling tab, specify your preferences.

Also asked, how do I turn off multiple selections in AutoCAD?

Click the product name in the top-left corner (AutoCAD or AutoCAD LT), and select Preferences. On the Cursor & Selection tab, clear the Use Shift key to add to selection option. Choose OK to close the Preferences window.

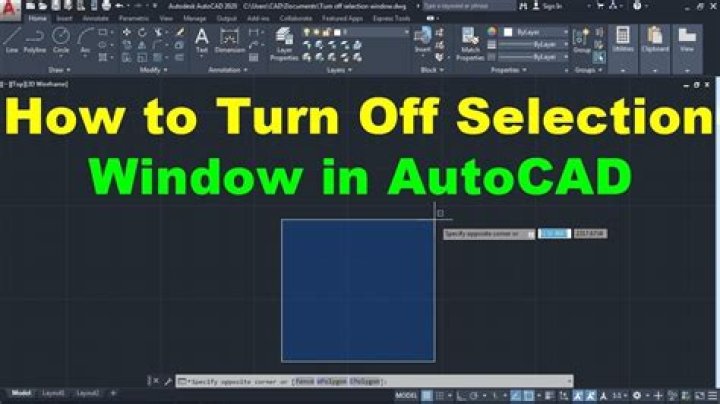

Likewise, how do I turn off quick selection in AutoCAD? For Windows versions of AutoCAD/AutoCAD LT, type OP or OPTIONS to bring up the Options dialog. In the Options, go to the Selection tab and uncheck the lasso feature, shown in the screenshot below. For Mac versions of AutoCAD and AutoCAD LT, type the variable name PICKAUTO at the Command line.

Regarding this, how do I turn on the selection window in AutoCAD?

Enable Implied Windowing to turn on automatic creation of the selection window:

1. On the command line, type in OPTIONS, and hit enter.
2. Click the Selection tab.
3. Under Selection Modes, select Implied Windowing.

Why can't I select anything in AutoCAD?

Solution: Double-click within the viewport to activate it so that the objects in model space can be selected and manipulated. Alternatively, change to the Model tab to access the data instead of doing it on the layout.

Related Question Answers

Why can't I select multiple lines in AutoCAD?

Re: I cant select multiple lines Either hold down the shift key to select the other line or go to options, use the Selection Tab, On the left side, remove the check mark from "Use Shift to add to selection" option.

How do I hide a selection box in AutoCAD?

Solution: For Windows versions of AutoCAD/AutoCAD LT, type OP or OPTIONS to bring up the Options dialog. In the Options, go to the Selection tab and uncheck the lasso feature, shown in the screenshot below. For Mac versions of AutoCAD and AutoCAD LT, type the variable name PICKAUTO at the Command line.

How do you select overlapped lines in AutoCAD?

To Select Overlapping or Close Objects

1. Make sure that Selection Cycling is turned on.
2. As you roll your cursor over objects, you will see an icon indicating that multiple objects are available for selection.
3. Click to see a list of available objects, and then click in the list to select the object you want.

How do I fix selection in AutoCAD?

Help

1. Right-click in the drawing area, and choose Options.
2. On the Selection tab, choose the settings you want. Among other settings, you can set. Whether objects to be selected are previewed during selection. Whether selected objects are highlighted.

How many selection methods are there in AutoCAD?

18 different ways

How do I change the selection in AutoCAD?

To Change Object Selection Settings

1. Right-click in the drawing area, and choose Options.
2. On the Selection tab, choose the settings you want. Among other settings, you can set. Whether objects to be selected are previewed during selection. Whether selected objects are highlighted.

How do you select objects with a crossing selection?

To Select Objects

1. Select individual objects by clicking them.
2. Drag from left to right to select all objects that are entirely enclosed in the selection rectangle or lasso (window selection).
3. Drag from right to left to select all objects that are crossed by the selection rectangle or lasso (crossing selection).

How do I select an area in AutoCAD?

To Select Objects

1. To specify a rectangular selection area, click and release the mouse button, move the cursor, and click again.
2. To create a lasso selection, click, drag, and release the mouse button.

What is a crossing window in AutoCAD?

2. Crossing window. This one is like normal window selection but in this case, any object which even touches the boundary of the window will be selected. To make this crossing window click at a point in drawing area and move your cursor towards left.

How do you do rectangular selection in AutoCAD?

To Select Objects

1. To specify a rectangular selection area, click and release the mouse button, move the cursor, and click again.
2. To create a lasso selection, click, drag, and release the mouse button.

How do you select an object?

Select objects that are part of a group. Select the group, and then do one of the following: To select one object, click the object. To select multiple shapes in a group, press and hold Shift or Ctrl while you click the shapes.

How do I turn off lasso in AutoCAD 2019?

This can be achieved by going to the OPTIONS menu in AutoCAD, Selection Tab, and untick “Allow press and drag for Lasso”. You can also turn the lasso off in the command line, setting the PICKAUTO system variable to 3.

How do I change the color of a selection in AutoCAD?

To Change the Color of Selected Objects

1. Select the objects whose color you want to change.
2. Right-click in the drawing area, and choose Properties.
3. In the Properties Inspector, click Color, and then click the down arrow. From the drop-down list, choose the color that you want to assign to the objects.
4. Press Esc to remove the selection.

How do I turn off lasso in AutoCAD 2018?

This can be achieved by going to the OPTIONS menu in AutoCAD, Selection Tab, and untick “Allow press and drag for Lasso”. You can also turn the lasso off in the command line, setting the PICKAUTO system variable to 3.
